Our Product

Triclad® is an atmospheric cladded transition joint. Shipbuilders aim to build the most reliable ship, vessel or superyacht within budget and on-time. In order to do so, they have to make the right choices for the most important welds in a ship. The most sought out solution: welding aluminium to steel with Triclad®, the aluminium – steel transition joint.

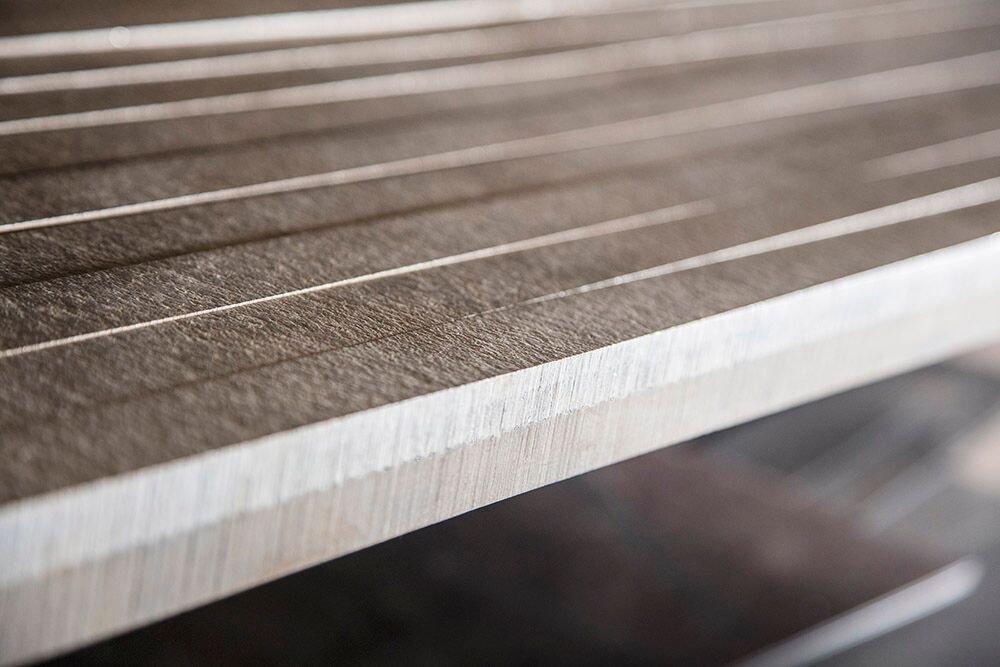

Triclad® is produced as a parent plate in a standard size. This plate has a usable surface area of 1300 x 3800 mm, from which strips or other shapes are cut. Think for example of squares, rectangles, discs, or even complex shapes. The last two are obtained using a water jet that will minimize the need for finish machining.

In order to always provide shipbuilders with the best solution, Triclad® is available in custom shapes and sizes.

Grades Steel Interlayer Al Alloy Thickness (mm) Length (mm) Width (mm)
Standard Triclad® A516 gr.55 Al 1050A Al 5086 34,5 (19+9,5+6) 3800 On demand
Triclad® 19 A516 gr.55 Al 1050A Al 5083 19 (10+5+4) 3800 On demand
Triclad® 28 Shipbuilding steel gr. D Al 1050A Al 5083 28 (15+3+10) 3800 On demand
Triclad® 33 Shipbuilding steel gr. D Al 1050A Al 5083 33 (20+3+10) 3800 On demand
Titanium Triclad® A516 gr. 55 Titanium Al 3003 30.5 (19+1.5+10) 2750 On demand
Stainless Triclad®  316L Titanium Al 3003 31.5 (20+1.5+10) 2750 On demand

Standard Triclad®

Steel A516 gr.55
Interlayer Al 1050A
Al Alloy Al 5086
Thickness (mm) 34,5 (19+9,5+6)
Length (mm) 3800
Width (mm) On demand

Triclad® 19

Steel A516 gr.55
Interlayer Al 1050A
Al Alloy Al 5083
Thickness (mm) 19 (10+5+4)
Length (mm) 3800
Width (mm) On demand

Triclad® 28

Steel Shipbuilding steel gr. D
Interlayer Al 1050A
Al Alloy Al 5083
Thickness (mm) 28 (15+3+10)
Length (mm) 3800
Width (mm) On demand

Triclad® 33

Steel Shipbuilding steel gr. D
Interlayer Al 1050A
Al Alloy Al 5083
Thickness (mm) 33 (20+3+10)
Length (mm) 3800
Width (mm) On demand

Titanium Triclad®

Steel A516 gr. 55
Interlayer Titanium
Al Alloy Al 3003
Thickness (mm) 30.5 (19+1.5+10)
Length (mm) 2750
Width (mm) On demand

Stainless Triclad®

Steel 316L
Interlayer Titanium
Al Alloy Al 3003
Thickness (mm) 31.5 (20+1.5+10)
Length (mm) 2750
Width (mm) On demand

The structural transition joints of Triclad® are Lloyds 3.2 approved. They use a patented bonding process that is certified according to the Military Specification MIL-J-24445A. We have sales representatives all over the world, so sending the material you require within 24 hours or being nearby to help with fabrication is always a priority.

Download our brochure for more detailed info!

Get the brochure
